LED Lighting - Technical Information

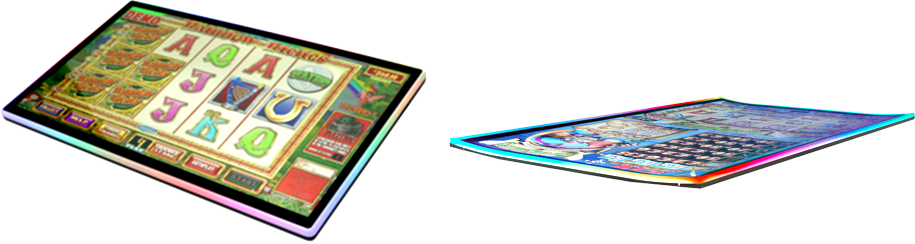

LED lighting technology can be applied to the inside or outside of the display to achieve
additional customizationor decoration. Fantalooks offers a variety of customized solutions.

LED Type
- RGB
- Panoramic LED Strip
Diffuser Material
- Plastic
- Glass Painting

LED decoration, customs LED decoration, LED strip, RGB, Diffuser, LED Display

How LED works

LED decoration, customs LED decoration, LED strip, RGB, Diffuser

OLED 설명
NO.	Symbol	PIN	Function description
1	VCC	VCC	IC POWER SUPPLY
2	VDD	VDD	LED POWER SUPPLY, cinnect to “+5V”
3	DO	DO	Control data signal output
4	DIN	DIN	Control data signal input
5	GND	GND	Data & Power Grounding
6	BIN	BIN	Backup Control data signal input

The control circuit and RGB chips are integrated in a 5050 components.

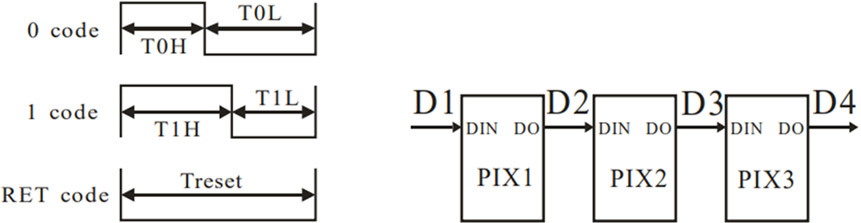

Using serial cascade interface, data receiving and decoding depend on one signal line.
